A flow meter (or a flow sensor) is an instrument that is used to indicate the amount of liquid, gas, or vapor moving through a pipe or conduit by measuring linear, non-linear, mass, or volumetric flow rates. Since flow control is often essential, measuring the flow of liquids and gasses is a critical need for many industrial applications – and there are many different types of flow meters that can be utilized depending on the nature of the application.
Gear Flow Meters
The ZHM MK gear flow meter (ball bearing design) are flow meters that are mainly used in lubrication and low-viscous liquids. Therefore they are used especially for fuel consumption measurement and the dosing of low viscous media.
Coriolis Mass Flow Meters
The TCM “CLASSIC” series of Coriolis Mass Flow Meters meets general industrial requirements with out-of-the-box ease of use. Lower cost and lower performance specs meet broader application needs. Typically used in paint, coatings and dosing of non-corrosive fluid requiring 0.3% accuracy and low to zero maintenance.
Turbine Flow Meters
The HM F turbine flow meter series (F for flange connections) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium-viscosity liquids, such as water, emulsions, glycol mixtures, and light oils.
Helical Flow Meters
SRZ ST Series
The SRZ ST helical flow meter series (tungsten carbide sleeve bearing design) are flow-measuring devices that are used mainly in high-viscosity, abrasive, filled as well as lubrication and non-lubrication media. These include polyurethane, polymers and viscous products, as well as all kinds of greases and oils.
Micro Flow Meters
The LFM micro-flowmeter is suitable for low-viscosity fluids in dosing and filling applications of all kinds. Its measuring element is based on the principle of a double ring piston meter. Thanks to the low pendulum mass and minimal frictional losses, the LFM responds to even the smallest volume flows.
DXN Portable Hybrid Ultrasonic Flow Meters
The Dynasonics® DXN Portable Hybrid Ultrasonic flow meter is a powerful tool used for troubleshooting flow issues, whether you want to quickly verify the flow reading of another meter or to data log flow system values over an extended period of time.
The Innova-Switch™ is state-of-the-art in gaseous and liquid flow switching or liquid level control. Flow or level detection is accomplished by using a high-resolution thermal differential technique. The sensor wetted parts are of durable 316L series stainless steel, all welded construction with
no moving parts.
The portable InnovaSonic® 210 ultrasonic clamp-on liquid flow meter enables the user to do flow measurement checks at many points in a flow process without the need for a permanent installation. Its high-powered ultrasonic pulse with improved digital signal processing requires just one set of transducers for a wide range of pipe sizes and materials including metal, plastic, and concrete.
Sierra's InnovaSonic® 205 incorporates the latest developments in digital signal processing to deliver highly accurate and repeatable ultrasonic flow measurements for a wide variety of liquids and pipe sizes.
The Innova-Sonic® 206 is a state-of-the-art universal transit-time flow meter designed using SLSI (single large-scale integration) technology. While principally designed for clean liquid applications, the instrument
is tolerant of liquids with a small number of air bubbles or suspended solids found in most industrial environments. It offers high accuracy, high performance, and fast response at a low cost.

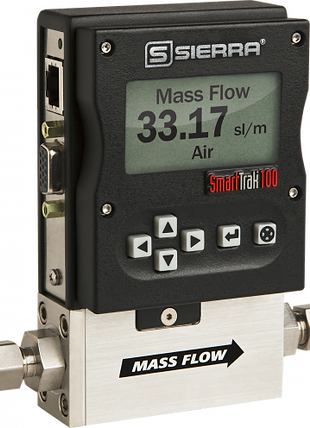

SmartTrak® 2 Model 100
Sierra's flagship SmartTrak 100 thermal mass flow controller is a true multi-gas digital MFC designed to deliver smooth, stable, accurate, and repeatable gas mass flow control you can rely on, every time. Unaffected by upstream gas temperature and pressure fluctuations, gas mass flow control with Sierra’s SmartTrak 100 is direct and unequivocal.

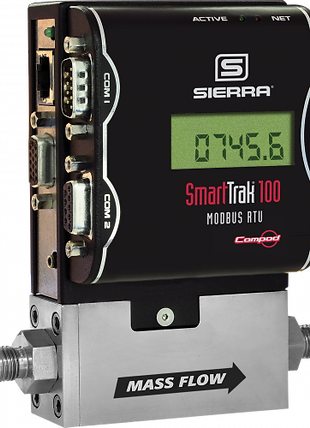

SmartTrak® 2 With Compod
The innovative Compod mounts to the face of any SmartTrak to set up simple process control systems without the need for PLC’s or computers.
Systems integrators love the Compod enabled SmartTrak MFC. You can add functionality to control a positive shutoff valve, add a pulse output, and read and react to a pressure transmitter. They can also send and receive data and perform datalogging and diagnostics, notifying of valve faults or system upsets.
The 780S is GHG certified and routinely used to measure gas to boilers and burners and other process equipment, air volume flow metering, compressed air flow, combustion air flow, natural gas fuel flow, custody transfer and stack gas emissions flow monitoring.
Sierra’s Series 640S Smart Insertion Mass Flow Meter provides a
reliable solution for gas flow measurement applications. Low-flow sensitivity, fast response, and outstanding rangeability have made
this model the instrument of choice for many critical gas flow applications.
Innova-Mass® Model 240
InnovaMass is a true high-performance, rugged, and reliable workhorse in the industry. The
240S Reducer version allows lower flow rate measurement than traditional vortex meters and
eliminates the need for field-installed piping reductions. The 240S cryogenic version is widely
used for fluids down to -330°F (-200°C).
Innova-Mass® 241 VTP
The Sierra Instruments’ Series 240 In-Line and the Series 241 Insertion
Innova-Mass™ Vortex Flow Meters provide a reliable solution for
process flow measurement. From a single entry point in the pipeline, Innova-Mass meters offer precise measurements of five parameters including mass flow, volumetric flow, temperature, pressure and fluid density.
The FastFlo™ 620S is an insertion thermal mass air flow sensor designed to give you a highly reliable, responsive and affordable mass flow measurement for light industrial applications where a NEMA 4X (IP65) enclosure is acceptable.
The new Multi-Trak™ Model 670S is an advanced state-of-the-art instrument for measuring mass flow rates in very large ducts or stacks that have non-uniform velocity profiles, high turn-down requirements, dirty gas streams, wide temperature ranges and fast velocity and temperature changes.
Ultra-High Purity 780S
The 780S is North America's #1 selling inline thermal mass flow meter. Our ultra-high purity 780S-UHP is the industry choice for bulk gas distribution service in semiconductor fabs, pharmaceutical production, and other ultra-clean processes. Real-time monitoring of gas usage provides reliable information on consumption and usage patterns in the manufacturing area.
The Chlorine-Trak™ 760S has been specifically designed to
perform as an accurate and cost-effective mass flow measurement
solution for chlorine injection processes found in typical wastewater treatment applications.
BoilerTrak™ is designed to provide an economical, easy-to-install solution for precise natural gas measurement for heaters and boilers to increase efficiency. The thermal mass meter is also suited for compliance with new regulations for burning natural gas and propane in commercial boiler applications.
Magnetoflow® Mag Meters
The Badger Meter Magnetoflow series of electromagnetic flow meters combines a flow detector with a Primo flow amplifier, creating a versatile, user-friendly flow metering system. Electromagnetic flow meters have inherent advantages and can accurately meter liquids that are highly corrosive, very viscous, contain a moderate amount of solids, or require special handling.
METER7500 Series Magnetic Flow Meters
The Badger Meter 7500 series flow meter combines advanced electromagnetic flow detection with a simple scaled pulse output capability to meet the demands of a wide range of industrial batch applications.
M-Series® Mag Meters
Electromagnetic flow meters manage critical flow applications to improve accuracy, decrease system maintenance and meet the demands of challenging liquid conditions. This volumetric flow meter does not have any moving parts and is ideal for wastewater applications or any dirty liquid that is conductive or water-based.
OP Chemical and Sanitary
Oscillating Piston (OP) meters by Badger Meter are highly accurate and ideal for food, beverage, chemical and other sanitary applications. Combine the OP meter with most Badger Meter mechanical and electronic accessories for applications from batching to inventory control. Maintenance is easy through simple replacement of the piston element.
EPM-2 IND Standard Series
The Badger Meter EPM-2 oval gear meter is designed to dispense motor oil (SAE 5 to 50), gear oil (SAE 80 to 240), automatic transmission fluid, antifreeze (ethylene glycol) solution, and hydraulic fluid. The preset feature will allow users to perform other service tasks while fluid is dispensed.
The Industrial Oval Gear Meter, Model IOG is a modular flow meter design, economical yet highly accurate and rugged. The model IOG is designed for a variety of chemical applications including petroleum based fluids, water solutions and any other liquid compatible with the materials of construction.
The most common primary flow element is the concentric orifice plate, often called the “sharp-edged” orifice plate. Its main advantages are: low cost, accuracy, ease of installation, variety of construction material and quick delivery.
Meriam LFEs are excellent for measuring low gas flow rates from 0.2 SCCM up to 2250 SCFM. They are inherently accurate and repeatable and are calibrated traceable to NIST. Flow turndown s 20:1 or better and the differential pressure generated is nearly linear to flow. This combination makes an LFE a great choice for gas flow measurement.
Series 22L / 23L
The Accutube Series 22L Probe is constructed of 316LSS cast head and 316LSS probe. The Series 22L Probe has single-mounted support and installs through a single packing gland and thredolet. The Series 22L Accutube is factory-fitted with 1/2" NPT connections and is shipped with mounting hardware complete. Series 22L Accutubes are available for line sizes 2" through 42".
Series 24D / 25D
Accutube averaging pitot tubes are primary flow elements that develop a differential pressure in response to the flow rate through a pipe or duct. These square root type elements are excellent for measuring the flow rate of gases, steam and liquids. Chief advantages over other flow elements include relatively low purchase price, low installation cost, and low permanent pressure.
